Optimize any type of hydronic system

Discover the BuffMax’s multiple applications and advantages by reading our product documentation below.

Buffer tank The tank that makes all the difference.

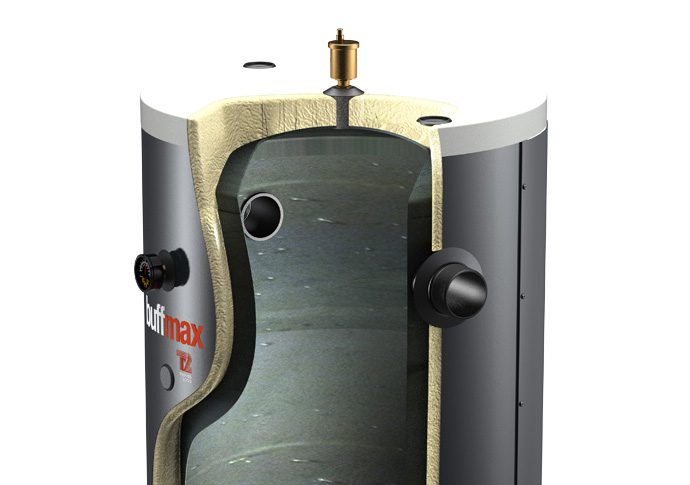

The BuffMax from Thermo 2000 is a 3-in-1 solution that acts as a buffer tank, storage tank and hydraulic separator. It is recommended to optimize the performance of several different types of heating systems: low-mass boilers, biomass systems, geothermal and heat pump applications, multi-zone systems, and solar energy systems. The BuffMax is synonymous with versatility. The BuffMax’s tank comes with a 10-year warranty. Its mechanical parts come with a 2-year warranty.

Create your BuffMax !

Create your ideal BuffMax in just a few clicks and generate a unique code representing your personalized configuration. This code can then be submitted to our sales team via an online form, allowing us to assess your needs and provide you with a tailored solution.

Simplify your purchasing process and ensure you get the BuffMax perfectly suited to your system.

For fast and cost-effective delivery.

STANDARD MODEL CODES

BuffMax 20 STD

BUFF20 - 1.25NPT - HRZ - HT

BuffMax 80 STD

BUFF80 - 2.5NPT - HRZ - HT

BuffMax 175A STD

BUFF175A - 3NPT - HRZ - HT

BuffMax 30 STD

BUFF30 - 1.5NPT - HRZ - HT

BuffMax 120 STD

BUFF120 - 3NPT - HRZ - HT

BuffMax 200A STD

BUFF200A - 3NPT - HRZ - HT

BuffMax 50 STD

BUFF50 - 2NPT - HRZ - HT

BuffMax 120A STD

BUFF120A - 3NPT - HRZ - HT

Build your BuffMax:

    1. Volume in US gallons

  • 20 - 20 US gal.
  • 30 - 30 US gal.
  • 50 - 50 US gal.
  • 80 - 80 US gal.
  • 120 - 120 gal US gal.
  • 120A - 120 US gal. ASME
  • 175A - 175 US gal. ASME
  • 200A - 200 US gal. ASME

    2. Diameter and type of connections

  • 1.25NPT - 1.25’’ dia. MNPT thread1
  • 1.5NPT - 1.5’’ dia. MNPT thread1
  • 2NPT - 2’’ dia. MNPT thread
  • 2.5NPT - 2.5’’ dia. MNPT thread
  • 3NPT - 3’’ dia. MNPT thread
  • 1.25FLG - Class 150 flanges for 1.25’’ dia. pipe1
  • 1.5FLG - Class 150 flanges for 1.5’’ dia. pipe1
  • 2FLG - Class 150 flanges for 2’’ dia. pipe
  • 2.5FLG - Class 150 flanges for 2.5’’ dia. pipe
  • 3FLG - Class 150 flanges for 3’’ dia. pipe
  • 4FLG - Class 150 flanges for 4’’ dia. pipe

    3. Direction of connections

  • HRZ - Horizontal connections
  • VRT - Vertical connections1 2

    4. Application

  • HT - Heating water
  • CW - Heating water and/or cooling water (Add elastomeric insulation to prevent condensation)

    5. Addition of two connections

  • BXT- Addition of two connections positioned at the center of the tank.1

    6. Diameter and type of BXT connections

  • 1.25NPT - 1.25’’ dia. MNPT thread
  • 1.5NPT - 1.5’’ dia. MNPT thread
  • 2NPT - 2’’ dia. MNPT thread
  • 2.5NPT - 2.5’’ dia. MNPT thread
  • 3NPT - 3’’ dia. MNPT thread
  • 1.25FLG - Class 150 flanges for 1.25’’ dia. pipe
  • 1.5FLG - Class 150 flanges for 1.5’’ dia. pipe
  • 2FLG - Class 150 flanges for 2’’ dia. pipe
  • 2.5FLG - Class 150 flanges for 2.5’’ dia. pipe
  • 3FLG - Class 150 flanges for 3’’ dia. pipe
  • 4FLG - Class 150 flanges for 4’’ dia. pipe
  • 1 Not available on ASME models
  • 2 Limitation of diameters and type of connections when in vertical position.
    Available in vertical position :
  • •20, 30, 50 US gal. -- 1.25NPT.
  • •80, 120 US gal. -- 1.5NPT or 2NPT

Send us your BuffMax!
